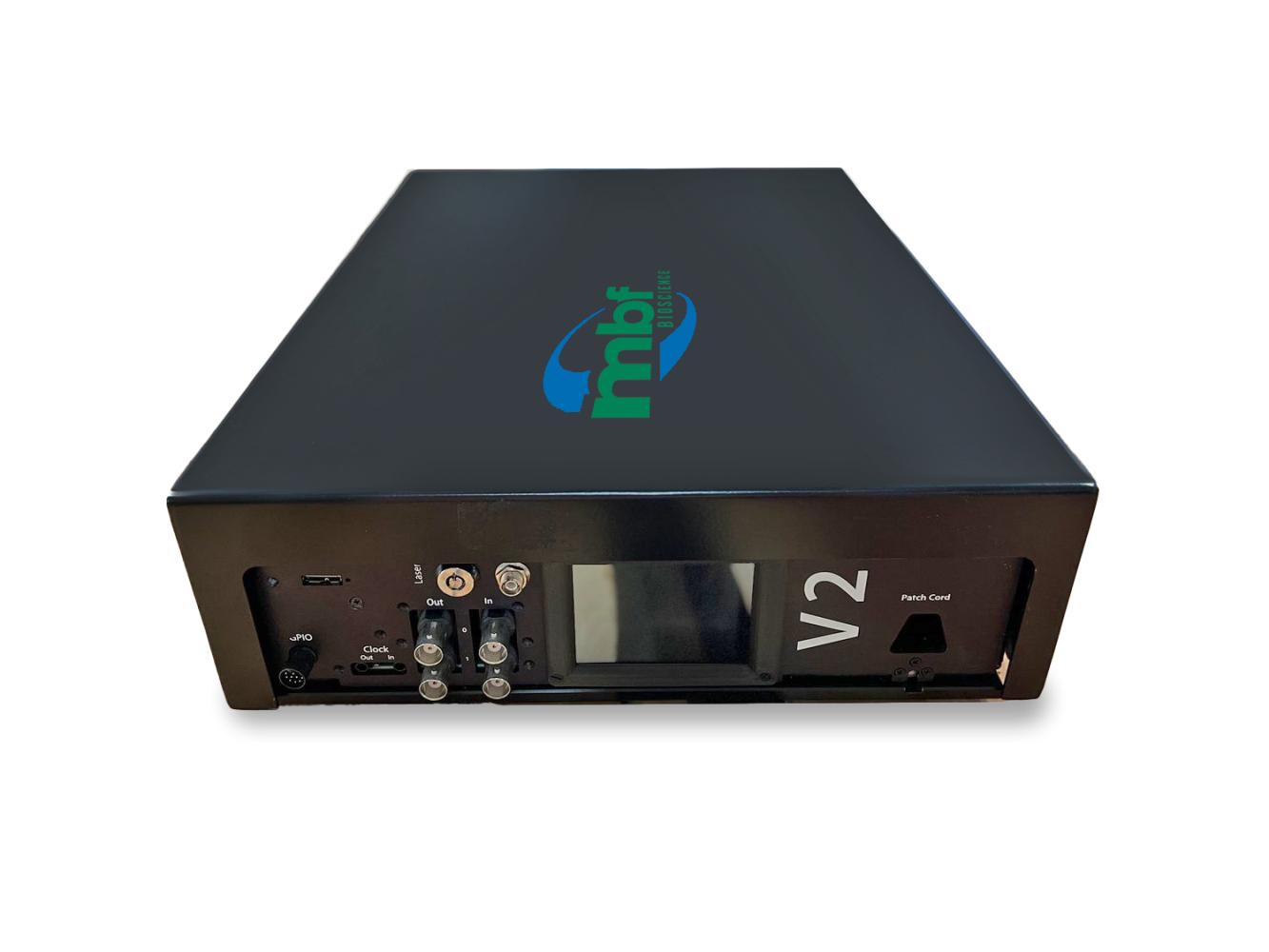

FP3002
The Next Generation Fiber Photometry SystemProduct Overview
FP3002 enables recording of bulk signals from calcium and neurotransmitter indicators in two colors, multiple animals, and multiple brain regions simultaneously. With the sensitivity to pick up the activity of a single cell and the bandwidth to record from multiple freely moving animals and/or brain regions simultaneously, the original FP3001 set the standard for multi-fiber photometry recordings. Through our collaborative work with over 100 labs worldwide, we have designed the second-generation system — the FP3002 — that includes many improvements and optimizations for user accessibility and processing power while integrating an important new feature: lasers for optogenetic stimulation.
Key Benefits
- Real-time processing and flexible control with a new computer interface
- 3 excitation wavelengths for simultaneous dual-color imaging and motion control
- Integrated optogenetics stimulation
- Ability to record from up to 8 regions in freely-moving animals
- Increased accuracy – through the use of ultra-stable scientific LEDs with patent-pending fiber optic feedback mechanism
- High sensitivity - through the use of an upgraded sCMOS camera and knife’s edge image splitter
- Micro-second precision with synchronization across multiple devices
- Ability to collect analytical measurements for accurate across-subject comparisons
- The system is ready to go when it arrives — just plug and play
Plug and Play Fiber Photometry Solution
The FP3002 system combines 3 excitation wavelengths with an ultra-sensitive sCMOS camera sensor for simultaneous dual-color activity imaging in up to 8 regions of interest, all in freely-moving animals. Using state-of-the-art integrated lasers, the FP3002 system allows users to optogenetically stimulate while recording from the same fiber. Our compact and portable system offers a complete and comprehensive solution for fiber photometry with no assembly required.
Versatile Interface for Seamless Hardware Integration
The FP3002 system is designed for maximum versatility and efficiency, making it simple to synchronize with existing hardware in the lab. The FP3002 interface is powered by user-accessible software, making it easy to align fiber photometry recordings with various data streams including behavior hardware, cameras, and even custom-built devices.
| Acquisition Rate | 16-200 Hz |
| Absolute Sensitivity Measure | 4.51 (photons needed to equal noise) |
| Simultaneous Recordings from multiple fibers |
|
| Excitation LEDs |
|
| Emission Channels |
|
| Numerical Aperture | 0.37 - 0.4 |
| Digital Inputs | 2 |
| Digital Outputs |
|
| Timing Synchronization | sub-millisecond synchronization with external equipment |
Download FP3002 product sheet here.

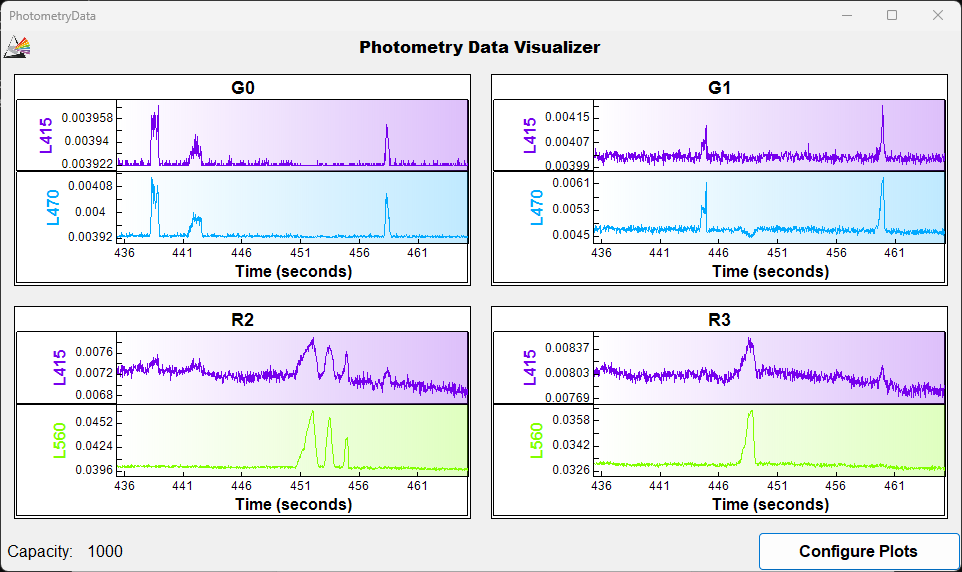

| Simultaneous Dual color recording plus built-in motion control
FP3002 is equipped with 3 LED wavelengths for near-simultaneous dual-color imaging and built-in motion control. Researchers can customize the number and duty cycle of excitation LEDs for a wide range of experiments with the click of a button, making it simple to configure settings for both short and long-term recordings. |  |

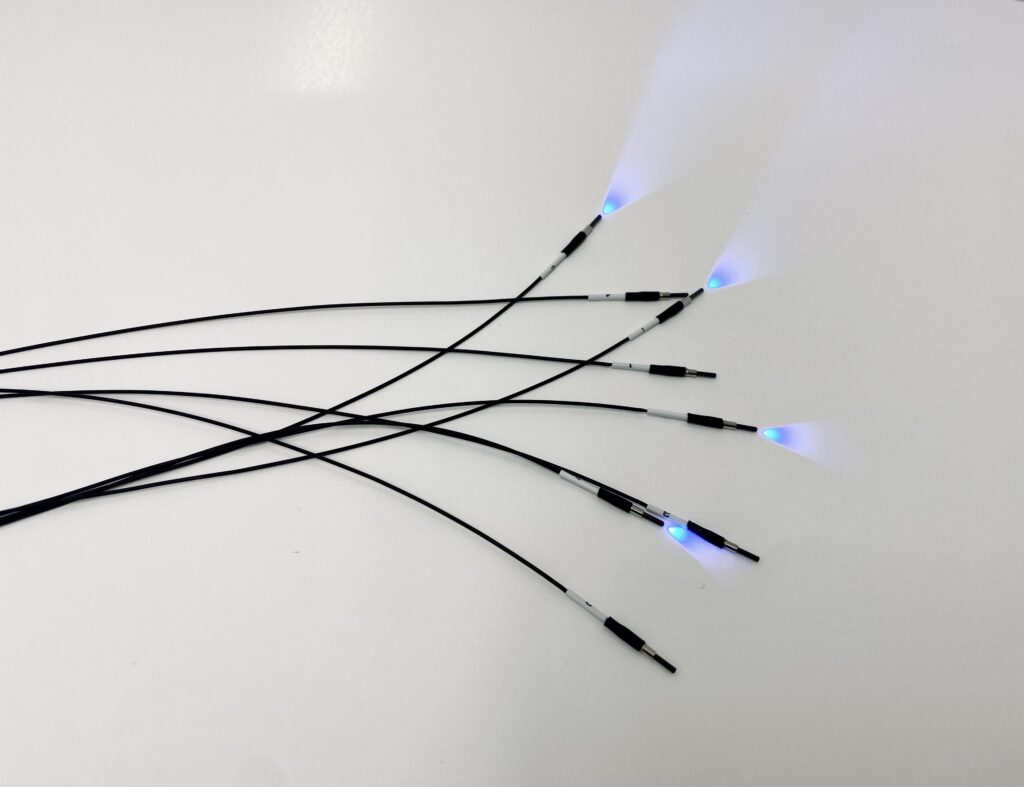

| Record from up to 8 regions of interest in freely-moving animals
FP3002 uses an innovative combination of bundle-branching patch cords and an ultra-sensitive sCMOS camera sensor to allow for simultaneous recordings in up to 8 regions of interest with no additional hardware required. Regions of interest can be split between subjects in any manner to accommodate a wide variety of experiments- i.e. 8 regions in a single subject, or a single region in 8 different subjects. |  |

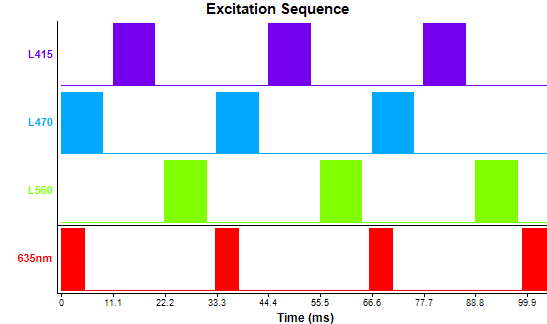

| Integrated lasers for optogenetic stimulation
FP3002 is the only fiber photometry system on the market with integrated lasers for simultaneous optogenetic stimulation and recording. Researchers can choose between a 450 nm laser for blue-light activated opsins like Channel Rhodopsin, a 635 nm laser for red-shifted opsins like Chrimson, or both. 635 nm lasers are uniquely engineered to be integrated into the same light path as excitation LEDs, allowing for optogenetic stimulation and recording through the same fiber. 450 nm lasers are configured into their own light path to allow for stimulation of upstream regions while recording downstream signals with a separate patch cord. |  |
| Seamlessly synchronize with existing behavior hardware
FP3002 is equipped with 2 digital inputs and 2 digital outputs to synchronize fiber photometry data and external behavior hardware with sub-second precision. Data acquisition is controlled through source-accessible software that is optimized to process parallel data streams, making it easy to record behavior videos, track animals, and synchronize custom hardware with ease. |  |
Who Is Using FP3002?
FP3002 is used across the globe by the most prestigious laboratories.
Cited in Peer Reviewed Scientific Publications
FP3002’s utility is underscored by the number of references it receives in the worlds most important scientific publications. See examples below:
Xiao, X., H. Deng, et al.
A Genetically Defined Compartmentalized Striatal Direct Pathway for Negative ReinforcementView Publication
Flanigan, M. E., H. Aleyasin, et al.
Orexin signaling in GABAergic lateral habenula neurons modulates aggressive behavior in male miceView Publication
David, S. J. and M. Bita
Prefrontal Cortex Representation of Learning of Punishment Probability During Reward-Motivated ActionsView Publication
Barik, A., A. Sathyamurthy, et al.
A spinoparabrachial circuit defined by Tacr1 expression drives painView Publication
Hrvatin, S., Sun, S., Wilcox, O.F. et al.
Neurons that regulate mouse torporView Publication
Dong, A., He, K., Dudok, B. et al.
A fluorescent sensor for spatiotemporally resolved imaging of endocannabinoid dynamics in vivoView Publication
Hollon, Nick G. et al.
Nigrostriatal dopamine signals sequence-specific action-outcome prediction errorsView Publication
Murphy, K. R., Farrell, J. S., Gomez, J. L., et al.
A tool for monitoring cell type–specific focused ultrasound neuromodulation and control of chronic epilepsyView Publication
K. M. John, S. Smrithi, J. Nelson, et al.
Enhancer-AAVs allow genetic access to oligodendrocytes and diverse populations of astrocytes across speciesView Publication
Frequently Asked Questions (FAQ)
What is Fiber photometry?
Fiber photometry is an activity imaging technique that measures changes in fluorescence as a proxy for biological events- most commonly, neuronal activity. When coupled to fluorescent biosensors like GCaMP, jRCaMP or dLight, fiber photometry allows for continuous monitoring of neural activity or neurotransmitter release with sub-second temporal precision.
Can I synchronize fiber photometry data with my existing behavior hardware?
There are a variety of options for synchronizing fiber photometry recordings with behavior hardware. The system includes 2 digital inputs and outputs that can send or receive 5v TTL pulses for ultra-precise timestamp alignment. Behavior cameras and custom Arduino-based devices can also be synchronized through data acquisition software for simple synchronization.
Can FP3002 be used to image neurotransmitter sensors like dLight?
Yes! Our ultra-sensitive sCMOS sensor is ideal for recording from novel neurotransmitter biosensors that have not been as thoroughly optimized as GCaMP variants. The maximum acquisition speed is sufficient to capture the dynamics of even the fastest biosensors, like iGluSnFR.
How large are the data files generated by FP3002?
FP3002 fiber photometry data files are much smaller than many other imaging techniques. Files for hour-long recordings are in the KB range.
