BrainMaker interface

Overview

Most of your work will take place in the main window that opens when you launch BrainMaker software. You can also view your work in the 3D visualization window. Both are described below.

Main BrainMaker window

Browse the "slide show" below for an overview of the principal components in the BrainMaker main window.

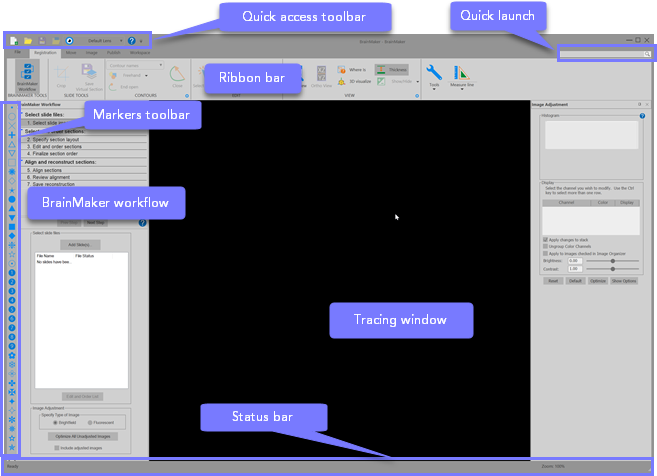

Main window

  • The Tracing window shows what you're working on.

  • The Status bar at the bottom of the BrainMaker software window reports ongoing processes and alerts you if there are problems. Learn more about the Status bar.

  • Customize your workspace by setting up docked windows for tools that you use frequently.

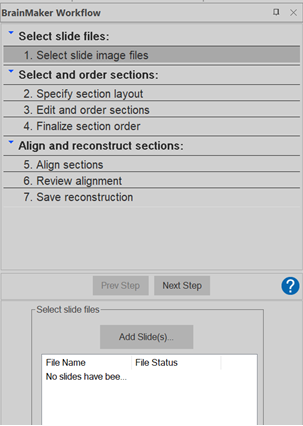

BrainMaker Workflow

When you launch BrainMaker software, the BrainMaker Workflow is open and docked on the left side of the main window.

  • The workflow guides you through the process of automatically reconstructs high-resolution 3D image data from serial sections in whole slide images.

  • For additional help, click the help icon on any step to jump to the relevant page in the User Guide.

Tool Ribbons

The Ribbon bar contains tabs for the File menu and the task-oriented tool Ribbons.

  • Click the tabs to access each tool ribbon (or the File menu)
  • Tools are clustered on each ribbon; quickly access Preferences for the tool group by clicking the gear icon on the ribbon.
  • You can hide the ribbon bar by right-clicking the ribbon area and choosing Minimize the ribbon

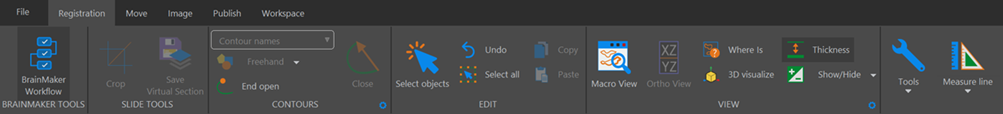

The Registration ribbon includes a button to open the BrainMaker workflow. It also contains useful tools—for drawing contours, selecting markers and contours, and measuring in the tracing window.



Tool Ribbons (continued)

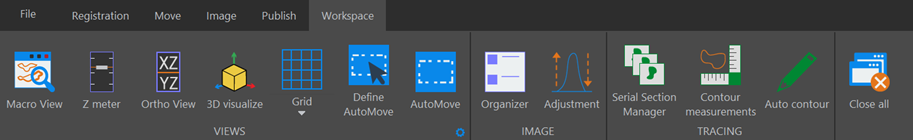

The Workspace ribbon includes all of the dockable windows—tools that you may use frequently.

The Image ribbon includes tools for adjusting and organizing images, cell detection, illumination correction, and many other functions.

Other available tool ribbons are the Move and Publish ribbons



Quick access tools

The top of the main window includes tools to help speed up your work.

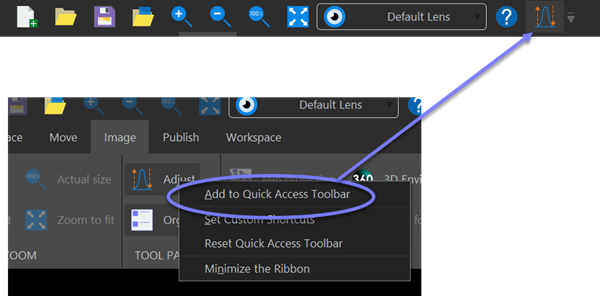

The Quick Access toolbar at the top left of the main window provides easy access to the tools you use frequently.

  • Right-click any tool in any ribbon and click Add to Quick Access Toolbar.

  • Use the right-click menu to remove tools or reset the Quick Access toolbar to its default.

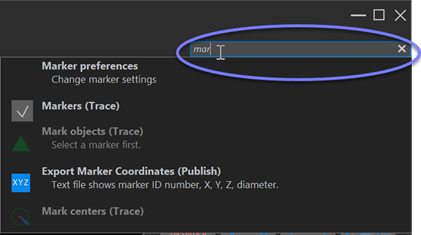

The Quick Launch at the top right of the main window jumps you to the tool you're looking for: start typing the name of the tool or command in the box, then click the item you want from the list that appears



Drag and drop files to open them

The quickest way to get started with BrainMaker software is to simply drag and drop files onto the application window.

Different windows open, depending on whether you drop image or data files; indicate how you want to handle your files.

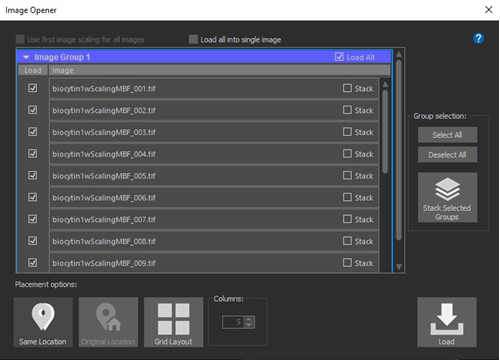

Image and image-containing files

(for example Leica .lif or Zeiss .czi files), the Image Opener window appears:

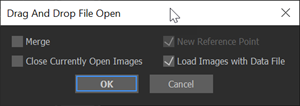

Data files

(for example .xml and .dat files), the Drag and Drop File Open window appears:

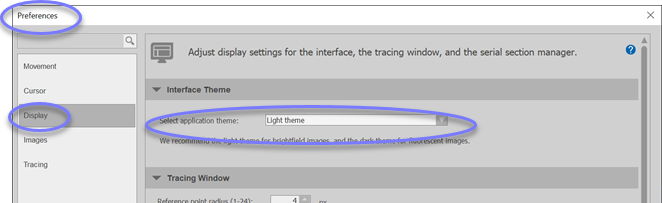

Light and Dark interface themes

Go to File > Preferences > Display and choose your preferred BrainMaker software theme.

  • The Dark theme was developed for working with fluorescence images

  • and the Light theme for brightfield images.

3D Visualization window

The high performance 3D visualization window provides a powerful tool for viewing your images and annotation data. In addition, you can edit contours and markers, create video clips, and export your 3D representations.

View the "slide show" below and use the help icons in the software to learn more about specific features.

Also see 3D visualization overview.

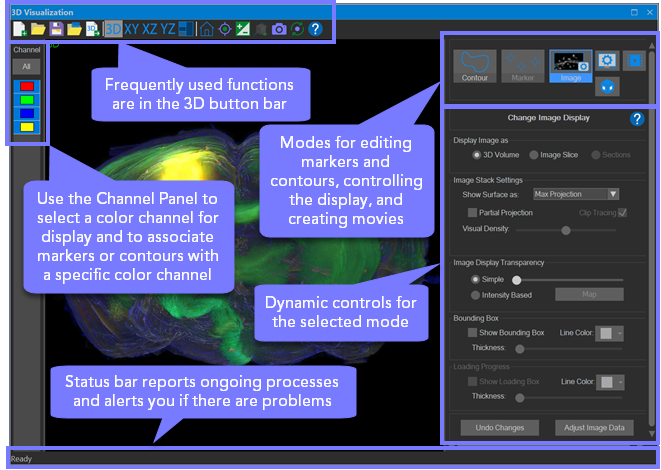

3D window overview

Click the 3D visualize button on the Registration, Image, or Workspace ribbon to open the 3D visualization window.

Learn more about the 3D button bar.

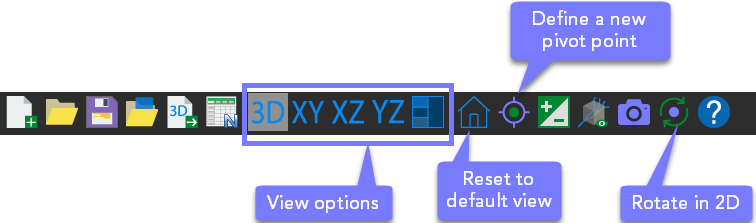

Navigating in the 3D window

Use your mouse and the navigation tools in the 3D button bar

Use your mouse to:

  • Rotate: Drag the mouse to rotate the image around a pivot point.
  • Zoom: Scroll the mouse wheel to zoom in or out.
  • Pan: Hold the Shift key on your keyboard and drag your mouse to pan.

The 3D visualization window button bar includes many commonly used functions (some are repeated from the main window).

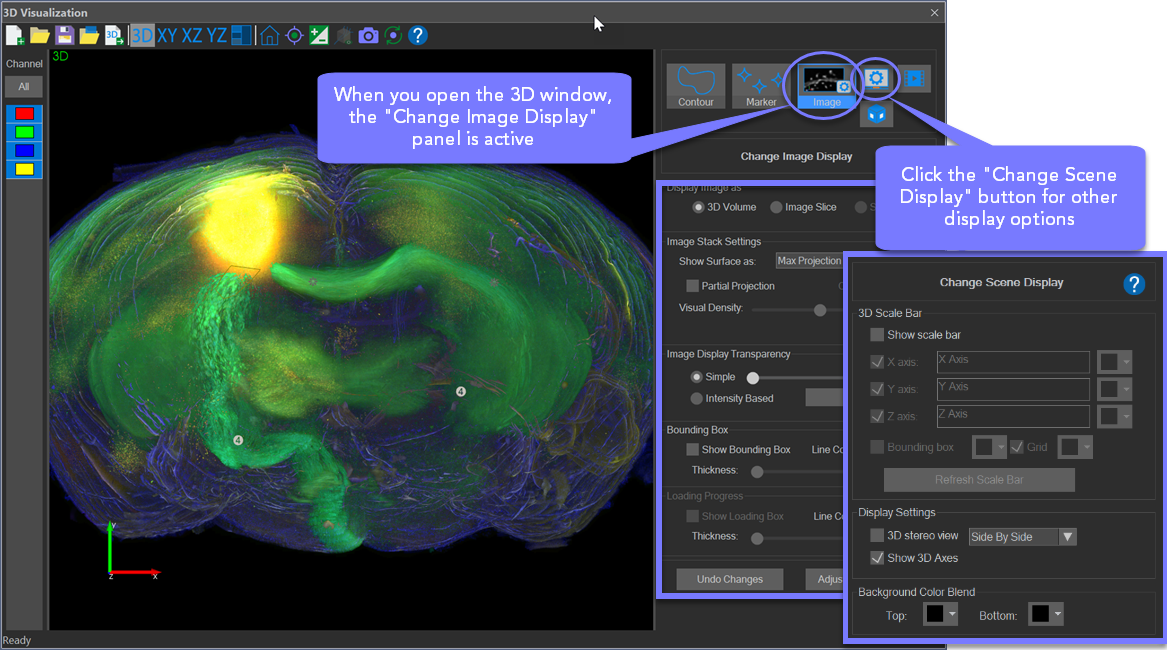

Customize image and scene display

Learn more about changing the Image display

Learn more about changing the Scene display

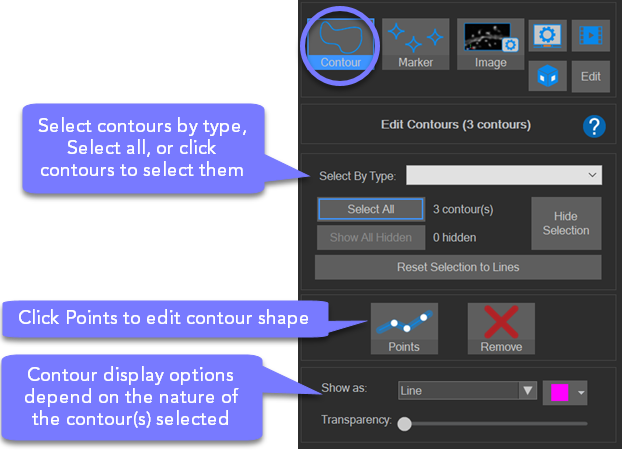

Editing contours in the 3D window

Contours are 2-dimensional shapes that you can create in the main (2D) window to define regions of interest.

You can edit contours in the main window or in the 3D visualization window.

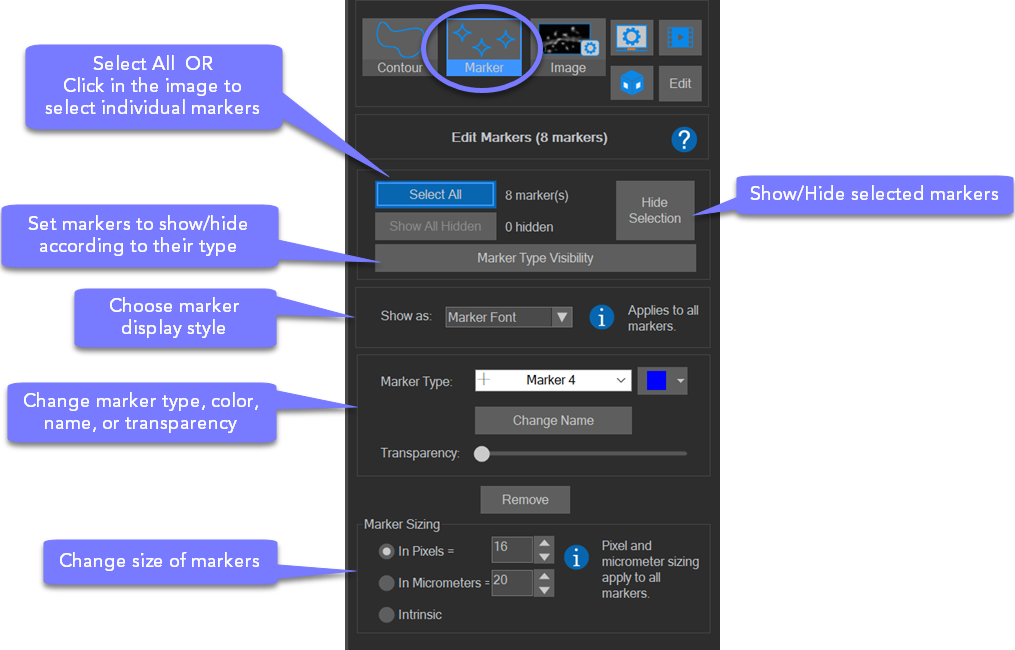

Editing markers in the 3D window

Place markers in the main (2D) window to mark features of interest.

You can edit markers in the main window or in the 3D visualization window.

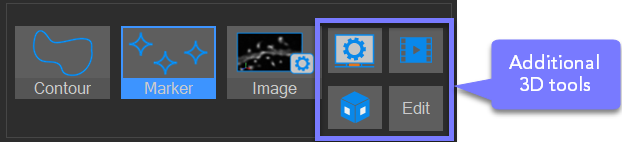

Additional tools in the 3D environment

Under the buttons for tracing and image modes in the 3D environment are an additional set of tools for working with your images.



Change Scene Display: Click the button to modify display settings, such as adding scale bars, 3D-stereo effects, and background colors.
Create Movies: Create mp4 movies of your images or tracings.
The Edit button appears when editing functions are available. For example to edit markers or contours.
Subvolume: Specify subvolumes (regions of interest) and load image data only from those regions. You can then work in easily managed portions of the image volume. By creating subvolumes that overlap slightly, you can reconstruct the entire image volume piece by piece.
