Tracing from a multichannel image (3D)

Before you start tracing in the 3D window, select a single channel to trace from with the Image Adjustment panel.

1. In the 3D window, click the Open Image icon to load a multichannel image.

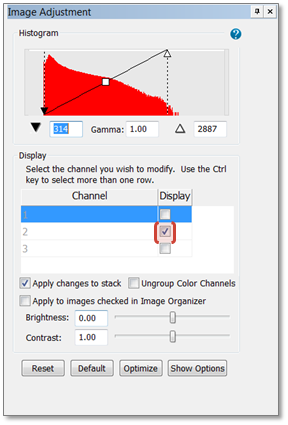

2. In the classic window, use the Image Adjustment.
   1. Select a channel.
   2. Make the necessary adjustments.
3. Return to the 3D window and click the Image button.

   In the Change Image Display panel, click the Image Sync with 2D button to apply the adjustments made with Image Adjustment.

4. Click the Vessel button to start tracing.



See Tracing with the automatic mode(3D), Tracing with the user-guided mode(3D), Tracing with the smart manual mode(3D)
