Slide Loader setup 5: Adjust auto-contour camera settings

1. Click the Camera Settings icon (outside of the workflow in the toolbar) to open the Camera Settings window.
2. Bring the tissue into focus.
3. Adjust the camera settings (Video Tool Panels: Camera Settings).
   • Brightfield: Adjust the white balance if necessary. These adjustments are used for 2D contour image only.
   • Multichannel: For each enabled channel, click the channel button then adjust the camera settings.
4. Apply background correction if necessary (Acquire Background Image).
   • In the workflow, click the Acquire background correction image button (you may need to scroll down in the workflow to see it). The Acquire Background Image window appears.

     Enable background correction is selected by default in the Acquire Background Image window.

     • Uncheck in the window if you don't want to enable background correction.

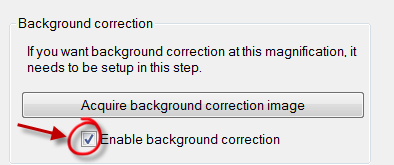

     • Check the checkbox in the workflow if you want to enable the option (the checkbox is enabled after using the Acquire background correction image button).



Define auto-contour scan region



See Slide Loader Virtual Tissue Setup Workflow

---
