Define output settings
Batch trace workflow - step 4
Neurolucida 360 stores your results as or in a location of your choice.
Use the image file name or assign a different file name.

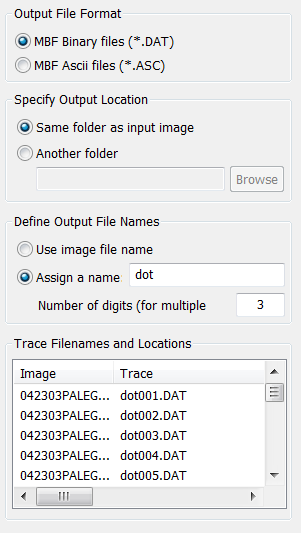

Output File Format
- MBF Binary DAT files -- can only be used with MBF products
- MBF ASC files -- compatible with many programs in addition to MBF products
Output Location
Save the output in the same folder as the images, or choose another folder.
Define Output File Names
Use image file name: file name with the output file format extension selected in step 2.
Assign a name: Use a meaningful name, or a name consistent with your naming conventions.
Trace Filenames and Locations
Provides a preview of the data files (output) file names.
