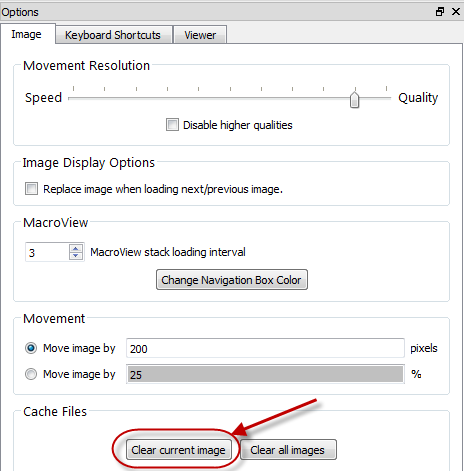

The image or MacroView image looks corrupt

This is often caused by a corrupt image cache. You need to clear the cache.

1. With the image open, click Tools>Viewer Options to display the Options panel.
2. In the Image tab, under Cache Files, click Clear current image .
3. Close and re-open the image.
